2014 OUTLAW EXTREME FUEL TANK ASSEMBLIES 2014OLEXTFTASSY 0 Reviews
Product Code: 2014OLEXTFTASSY

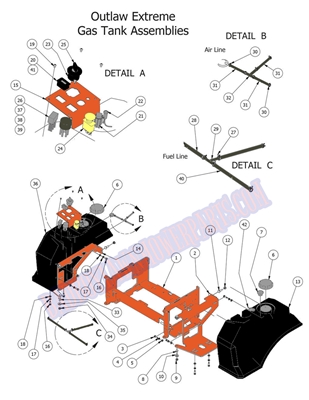

2014 OUTLAW EXTREME FUEL TANK ASSY:
ITEM# 1, 080-5000-00, OUTLAW SEAT BRACKET 2012
ITEM# 2, 031-2031-00, Outlaw Tank Support Left
ITEM# 3, 018-2007-00, 5/16-18 X 1 GR 5 Hex Bolt Zinc
ITEM# 4, 019-8051-00, 5/16 Lockwashwer Zinc
ITEM# 5, 019-8044-00, 5/16 USS Flat Washer Zinc
ITEM# 6, 066-8083-00, 3.5" Tethered Fuel Cap
ITEM# 7, 067-4050-00, Fuel Gauge-Tanks w/downtube
ITEM# 8, 018-8065-00, 5/16-18 X 1 Carriage Bolt Zinc
ITEM# 9, 013-8049-00, 5/16-18 Nylon Flange Nut
ITEM# 10, 019-6042-00, .360 ID Plastic Washer
ITEM# 11, 018-5043-00, 3/8-16 X 1-1/4 Carriage Bolt
ITEM# 12, 013-5202-00, 3/8 Nylock Flange Nut
ITEM# 13, 067-8000-50, Lft Fuel Tank/XPXTRM/2012 & up
ITEM# 14, 031-2030-00, Outlaw Tank Support Right
ITEM# 15, 079-3300-00, Outlaw Instrument Panel 2010
ITEM# 16, 018-2007-00, 5/16-18 X 1 GR 5 HEX BOLT ZINC
ITEM# 17, 019-8051-00, 5/16 LOCKWASHWER ZINC
ITEM# 18, 019-8044-00, 5/16 USS FLAT WASHER ZINC
ITEM# 19, 018-2010-00, 10-32 X 3/8 BS C/S 18-8 SS
ITEM# 20, 083-4013-00, Tachometer-N211-0100-1003
ITEM# 21, 077-2075-00, 12-Volt Auxiliary Plug
ITEM# 22, 089-1000-00, Oil Light
ITEM# 23, 077-8076-00, Ignition Switch
ITEM# 24, 056-8058-00, PTO Engager-Switch for Blades
ITEM# 25, 042-9000-00, Ignition Key
ITEM# 26, 086-0032-00, Wiring Harness-32hp Lightning/
ITEM# 27, 072-8069-00, 1/4 Fuel Line Clamp
ITEM# 28, 051-8067-00, 1/4 Fuel Line Hose PRICED/FOOT
ITEM# 29, 073-8068-00, Fuel Line T
ITEM# 30, 072-8070-00, MZ Tank Hose Clamp 3/16 Vinyl
ITEM# 31, 051-8072-00, 1/4" Vinyl Tubing - Black
ITEM# 32, 073-8068-00, FUEL LINE T
ITEM# 33, 018-8065-00, 5/16-18 X 1 CARRIAGE BOLT ZINC
ITEM# 34, 013-8049-00, 5/16-18 NYLON FLANGE NUT
ITEM# 35, 019-6042-00, .360 ID PLASTIC WASHER
ITEM# 36, 067-8001-50, RGHT FUEL TANK/XPXRM/2012 & UP
ITEM# 37, 086-0045-00, Wiring Harness - 31hp Kawasaki
ITEM# 38, 086-2008-00, Harness-30 Kohler 2006 and up
ITEM# 39, 086-1201-00, Relay Terminal
ITEM# 40, 051-7070-00, Fuel Line Assy - 31 Outlaw
ITEM# 41, 083-4050-00, Tachometer-2012 29efi Kohler
ITEM# 42, 067-6052-00, Rollover Valve-White
