2013 CZT 54" DECK ASSEMBLY 13CZT54DK 0 Reviews

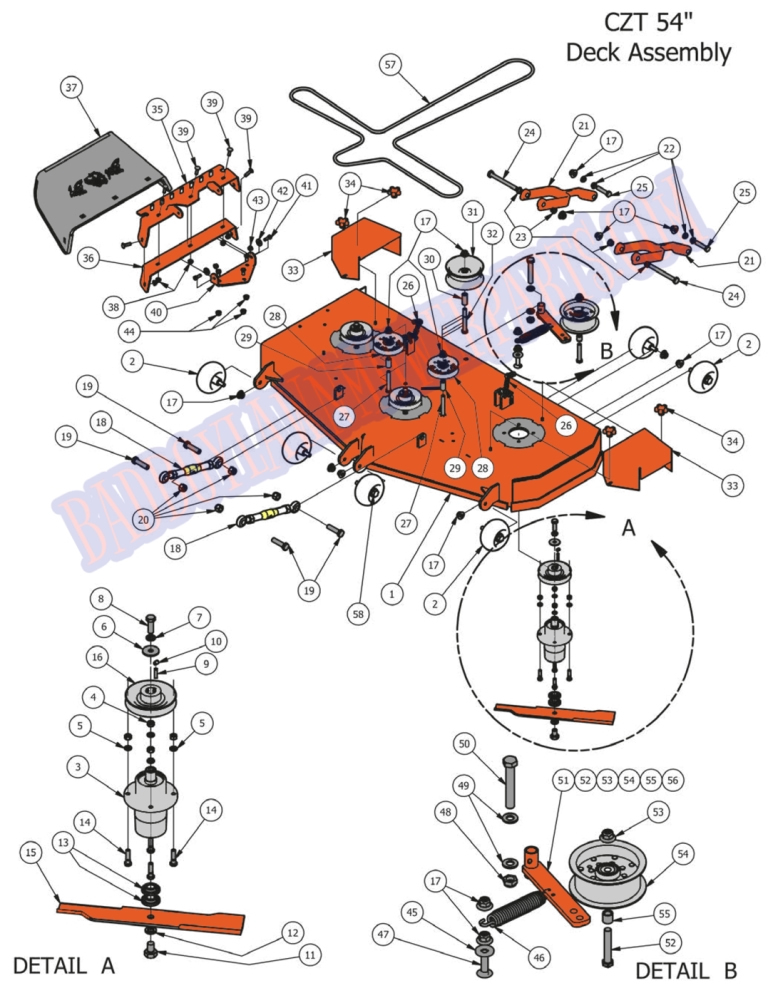

2013 CZT 54" DECK ASSEMBLY:
ITEM# 1, 060-6054-00, 2013 cZT 54" Deck
ITEM# 2, 022-1000-00, Deck Wheel for Outlaw
ITEM# 3, 037-6015-00, Short Shaft Spindle
ITEM# 4, 013-6014-00, 3/8-16 Hex Nuts Zinc
ITEM# 5, 019-5037-00, 3/8 Lockwasher Zinc
ITEM# 6, 019-6020-00, 1/2 Belleville Washer #K2000-G
ITEM# 7, 019-5007-00, 1/2 Lockwasher Zinc
ITEM# 8, 018-6019-00, 1/2-20 X 1-1/2 GR 5 Bolts Zinc
ITEM# 9, 042-6030-00, 1/4 x 1 Square Key
ITEM# 10, 030-0050-00, 5/16 Set Screw
ITEM# 11, 018-6020-00, 5/8-18 X 1-1/2 GR 8 Hex Bolts
ITEM# 12, 019-4807-00, 5/8 Lockwasher Zinc
ITEM# 13, 037-6023-00, Spindle Bearing, 2004 and up
ITEM# 14, 018-6012-00, 3/8 x 1 1/2 Bolt
ITEM# 15, 038-0001-00, 54" Fusion Blade for Outlaw
ITEM# 16, 033-6003-00, 5" Spindle Deck Pulley - DB-80
ITEM# 17, 013-8050-00, 1/2-13 Nylon Insert Flange Nut
ITEM# 18, 048-6056-00, Toplink/Turnbuckle-Deck Adjust
ITEM# 19, 018-6059-00, 5/8-11 X 2-1/2 GR 5 Hex Bolts
ITEM# 20, 013-7021-00, 5/8-11 Nylon Insert Locknut Zi
ITEM# 21, 031-6010-00, Deck Hanger (One Piece)
ITEM# 22, 032-5057-00, Flange for Lower Deck Arm
ITEM# 23, 032-5056-00, Flange Bushing-Deck Arms
ITEM# 24, 018-1090-00, 1/2-13x5 1/2 Hex Bolt Grade 5
ITEM# 25, 018-6037-00, 1/2-13 X 2-1/4 GR 5 Hex Bolts
ITEM# 26, 047-6050-00, ZT Deck Hanger Chain Assembly
ITEM# 27, 018-2018-00, 1/2 x 3 1/2 Flange Bolt - Gr 8
ITEM# 28, 033-6001-00, 4 3/4 Idler Pulley - ABFI-76
ITEM# 29, 025-5338-00, .502 ID X .750 OD X 1.500 Leng
ITEM# 30, 025-5339-00, .502 ID X 1.00 OD X 1.750 Leng
ITEM# 31, 033-5001-00, Obsolete Use 033-5000-00
ITEM# 32, 018-5019-00, 1/2-13 X 4 GR 8 Hex Bolt Yello
ITEM# 33, 014-6010-00, Plastic Pulley Cover
ITEM# 34, 045-6043-00, 5/16 Black Plastic Knob
ITEM# 35, 039-4870-00, 48/52 Discharge Top Bracket Ru
ITEM# 36, 039-4871-00, 48/52 Discharge Lower Bracket
ITEM# 37, 210-6005-00, Rubber Discharge Chute-Compone
ITEM# 38, 013-8049-00, 5/16-18 Nylon Flange Nut
ITEM# 39, 018-4703-00, 5/16-18 X 1-1/4 Carriage Bolt
ITEM# 40, 206-6017-00, Discharge Chute Hanger-Deck
ITEM# 41, 018-2007-00, 5/16-18 X 1 GR 5 Hex Bolt Zinc
ITEM# 42, 019-6042-00, .360 ID Plastic Washer
ITEM# 43, 013-8049-00, 5/16-18 Nylon Flange Nut
ITEM# 44, 013-5201-00, 3/8-16 Hex Flange Nuts Zinc w/
ITEM# 45, 019-2040-00, 1/2 Flat Washer
ITEM# 46, 034-2009-00, 2009 Deck/Pump Idler Spring
ITEM# 47, 018-1050-00, 1/2 x 2 Carriage Bolt
ITEM# 48, 013-5301-00, 5/8-11 Nylon Insert Jam Locknu
ITEM# 49, 019-6017-00, .630 ID X 1.122 OD X .142 THK
ITEM# 50, 018-5311-00, 5/8-11 X 4 GR 5 Hex Bolts Zinc
ITEM# 51, 039-6945-00, Deck Idler 2009 AOS, Diesel,
ITEM# 52, 018-7016-00, 1/2-13 X 3 GR 5 Hex Bolts Zinc
ITEM# 53, 013-8050-00, 1/2-13 Nylon Insert Flange Nut
ITEM# 54, 033-5001-00, 5 3/4 Flat Idler-208032092
ITEM# 55, 025-5203-00, Spacer 3/4ODx1/2IDx0.75 Susp f
ITEM# 56, 039-6945-98, Deck Idler Assy-Pup/Lightning
ITEM# 57, 041-1560-00, 54" CZT Elite Deck Belt
ITEM# 58, 018-0010-00, Deck Wheel Bolt - 2011 Outlaw
